Rubber lined fittings

Rubber lined pipe fittings

1. Advantages and features: Compared with other wear-resistant pipes, it has the advantages of light weight, low transportation and installation cost, wear resistance, better impact resistance, etc.

2. Specifications of rubber lined composite pipes:

(1) Nominal diameter: Dn=80-2000mm, non-standard pipes can also be customized according to the specific working conditions of customers.

(2) Nominal pressure: Pn=0.6-10.0Mpa, steel pipe strength is selected according to design requirements;

(3) Single length: L1=6m, 9m, 10m, 12m (fixed length), L2=0.2m, 0.3m, 0.5m, 1m, 3m (non-standard short section)

(4) Rubber + ceramic lining thickness: usually not more than 6mm, special requirements can be customized

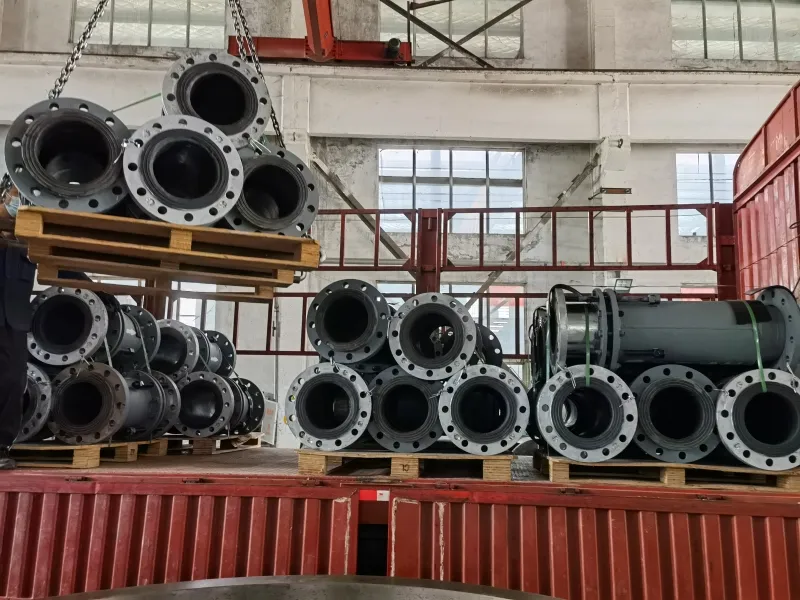

straight pipe

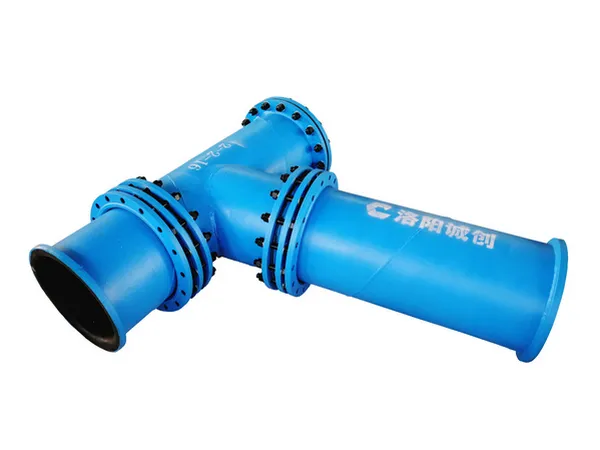

T-joint

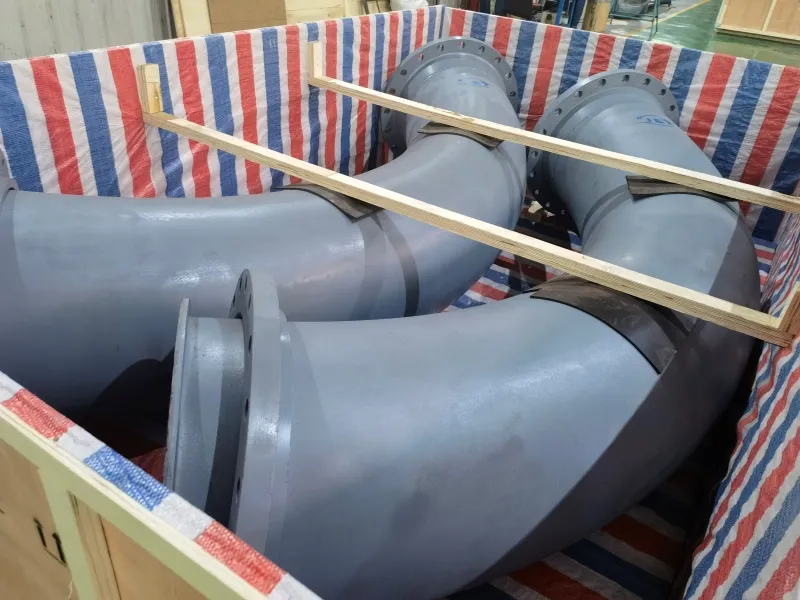

Elbows, fittings

Expansion joints (for regulating thermal expansion and contraction of pipes)
